Filtration  Seperators / Strainers  Self Cleaning Suction Strainer
Self-Cleaning Suction Strainer


The self-cleaning suction strainer is designed to protect pumps from becoming clogged by debris, trash and solid dirt. It is connected to the pump intake and submerged in the water source (river, lake, etc).

Principle of Operation

As the pumped water flows through the strainer, all the debris is trapped on the screen, protecting the pump from clogging or damage, resulting in increased pump efficiency and reducing maintenance costs.

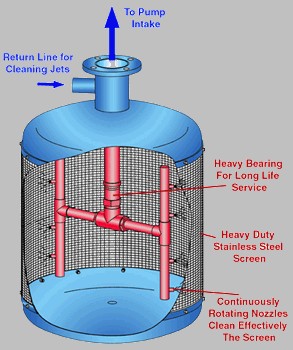

The screen is kept clean by the continuously rotating jets (using pump pressure through the return line), that sweep away the debris from the screen.


Series 181








Models
Model
Inlet / Outlet Diameters
Max Recommended Flow Rate (up to)
inch
mm
1200 Micron
2500 Micron
m/h
U.S. gpm
m/h
U.S. gpm
18104
4
100
80
352
100
440
18106
6
150
180
792
230
1012
18108
8
200
300
1320
380
1673
18110
10
250
420
1849
550
2421
18112
12
300
600
2641
750
3302
18114
14
350
800
3522
1000
4402
18116
16
400
1000
4402
1200
5283
